Are sandwich panels truly fire-resistant? As the demand for safer and more durable building materials grows, it's essential to know which materials can withstand extreme conditions like fire.
Sandwich panels, commonly used in construction for their insulating properties, are designed to offer both strength and safety. But how well do they perform when exposed to flames?
In this article, we’ll explore the fire resistance of sandwich panels, how different core materials impact their safety, and why fire resistance is a key consideration in modern construction.
Sandwich panels are popular in construction due to their insulating and structural qualities. Their fire resistance depends largely on the materials used in both the core and outer layers. While some panels offer robust fire protection, others provide basic resistance, making them suitable for a range of building types.
The materials chosen for the core of the sandwich panel are key to its ability to resist fire. With the right combination of materials, sandwich panels can significantly reduce the spread of flames and enhance safety.
Certain materials greatly improve the fire resistance of sandwich panels. Materials like rock wool and mineral insulation are often incorporated due to their excellent performance in fire situations.
Rock Wool: Naturally non-combustible, rock wool is one of the top choices for fire-resistant sandwich panels. It can withstand high temperatures and will not contribute to fire spread.
Mineral Insulation: This material also offers great thermal resistance and ensures that the sandwich panel maintains its structural integrity in case of fire.
These materials are carefully selected to enhance safety and protect the building in fire-prone environments.
Rock wool is an outstanding choice for sandwich panel cores when fire resistance is a priority. Made from volcanic rock, rock wool is non-combustible and performs excellently under high temperatures. It doesn’t release harmful smoke or gases, making it a safe and effective material for buildings.
Advantages: Excellent thermal resistance, no smoke or gas emissions, and a high melting point.
Applications: Ideal for industrial, commercial, and residential buildings, especially in areas requiring strong fire protection.
Polyurethane foam (PIR) offers an excellent combination of fire resistance and thermal insulation. PIR foam is a popular choice because it performs well in fire situations while still providing superior insulation properties, helping to maintain comfortable temperatures inside the building.
Advantages: Great thermal performance, lightweight, and effective fire resistance.
Applications: Suitable for a wide range of building types, from residential to commercial structures, where both fire resistance and insulation are important.
Expanded Polystyrene (EPS) is a versatile material that provides solid thermal insulation. It’s an excellent choice for many buildings as it can withstand a variety of environmental conditions, including heat, without compromising overall safety. EPS is often used in projects that require lightweight materials with strong insulating properties.
Advantages: Effective thermal insulation and cost-efficiency.
Applications: Ideal for a variety of building types, including warehouses, schools, and residential homes, where reliable fire protection is needed.
By selecting the right core material for sandwich panels, builders can ensure optimal fire resistance while maintaining the required thermal insulation and structural integrity.
To determine how fire-resistant sandwich panels are, they undergo rigorous testing. Standards like EN 13501 and ASTM E119 are commonly used to assess fire resistance. EN 13501 tests the behavior of construction materials in fire, while ASTM E119 measures the fire endurance of materials, including how long they can withstand fire before failing.
Sandwich panels are classified based on their fire performance. Common classifications include:
A1: Non-combustible materials, providing the highest fire resistance.
A2: Materials that do not significantly contribute to fire spread.
B: Materials with limited flammability and low fire spread.
C, D, E: Materials that contribute to fire spread, with increasing levels of risk.
The higher the classification, the better the panel resists fire.
While fire tests give us a controlled understanding, real-world scenarios can be more unpredictable. In contrast, buildings using panels with higher fire ratings performed much better in containing fire, offering greater protection to occupants and property.
Sandwich panels are designed with multiple layers to maximize their fire-resistant properties. The outer layers typically consist of metal, such as steel or aluminum, which are non-combustible materials. These metal layers form a protective barrier, slowing down the spread of fire.
The insulation core, sandwiched between the metal layers, plays a crucial role in fire resistance. This core can be made from different materials, each affecting fire behavior differently. For instance, rock wool and mineral-based insulation are highly resistant to fire. The metal layers prevent the core from directly catching fire, while the insulation helps control heat transfer.
The core material of sandwich panels significantly influences their fire behavior. Materials like rock wool are naturally non-combustible, meaning they won’t fuel a fire. This core material helps slow down the fire’s spread by absorbing heat and preventing flames from penetrating through.
On the other hand, some core materials like EPS (expanded polystyrene) are more flammable. In these cases, fire-resistant coatings or additional barriers are often used to reduce the risk. The performance of the core material in fire conditions is crucial in ensuring the panel meets safety standards.
| Core Material | Fire Resistance Rating | Common Uses |
|---|---|---|
| Rock Wool | A1 (Non-combustible) | Walls, Roofs |
| PIR (Polyisocyanurate) | B (Limited contribution to fire spread) | Industrial Applications |
| EPS (Expanded Polystyrene) | E (High flammability) | Insulation, Low-risk areas |
Each material serves a different purpose, but when combined with the right insulation, sandwich panels can be highly effective in fire-resistant construction.
Choosing the right sandwich panels for fire safety is crucial. It’s not just about selecting a material, but also understanding how each component contributes to overall fire resistance.
When shopping for fire-resistant sandwich panels, several key factors should guide your decision:
Fire Rating: Look for panels with high fire-resistance ratings. Check certifications like ASTM E119 or EN 13501, which test the panel's ability to withstand fire.
Core Material: The insulation core is vital. Materials like rock wool or PIR (polyisocyanurate) are known for their excellent fire resistance. Avoid core materials that are highly flammable, like expanded polystyrene (EPS).
Compliance with Safety Standards: Make sure the panels meet local and international fire safety standards. These standards ensure the panel has been tested and certified for fire performance.
Thickness and Durability: Thicker panels often offer better fire protection. Additionally, durable panels with added layers of protection can extend fire endurance.
If you're after top-tier fire protection, consider these high-performing sandwich panels:
Rock Wool Core Panels: Rock wool is naturally fire-resistant and non-combustible. These panels provide excellent thermal insulation and maintain their integrity even under extreme heat.

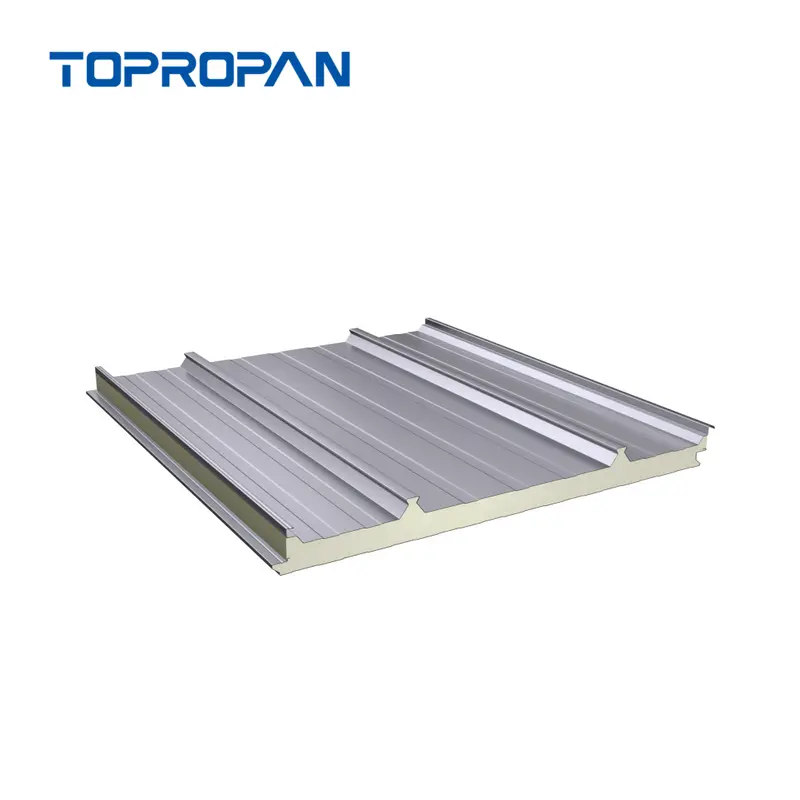

PIR Core Panels: Polyisocyanurate (PIR) is another strong contender. PIR panels are flame-retardant and offer great thermal performance, making them ideal for fire safety. They typically achieve a B or A rating in fire tests.
Mineral-Filled Panels: Panels with mineral-based insulation offer high fire resistance and stability. They are great for environments that require both fire protection and structural durability.
So, are sandwich panels fire resistant? Yes, sandwich panels provide excellent fire resistance, especially those made with fire-resistant core materials like rock wool. With their layered structure, these panels help prevent fire spread, making them a safe and cost-effective choice for building projects.

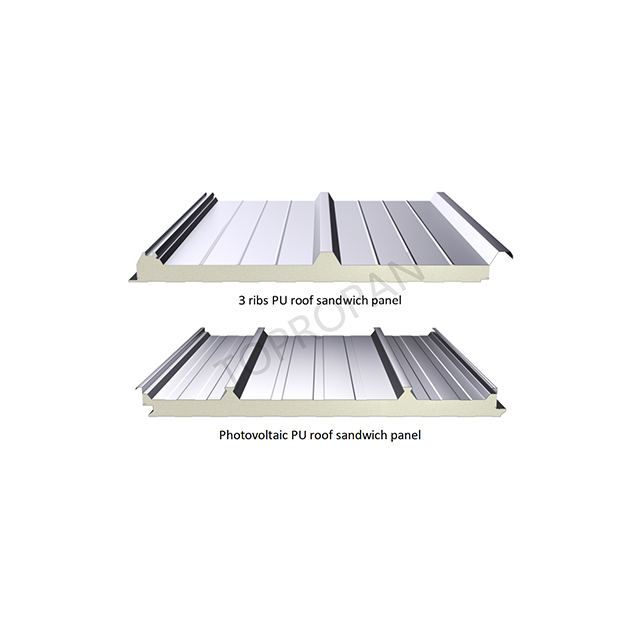

For optimal fire protection, consider selecting panels from TOPROPAN, which offers a variety of systems like wall, roof, cold storage, and cleanroom systems. TOPROPAN's sandwich panels, including PU/PUR/PIR options, provide superior insulation and energy efficiency while ensuring safety. With our professional technical support and high-quality, low-priced products, we ensure your construction needs are met with confidence.
A: Sandwich panels can be safe if made with fire-resistant core materials like rock wool. These materials prevent fire spread and help contain it.
A: Fire-resistant sandwich panels can withstand fire for up to four hours, depending on the material used and its thickness.
A: Yes, sandwich panels are suitable for residential, commercial, and industrial buildings. They are especially ideal for walls, roofs, and partitions.
