When architects, engineers, and facility managers embark on the design and construction of modern commercial, industrial, or public buildings, managing noise control is often one of the most critical challenges they face. Unwanted noise can severely impact productivity, disrupt communication, and create uncomfortable or even hazardous environments for occupants. To combat these acoustic challenges effectively, professionals must carefully evaluate the materials they choose for walls, ceilings, and enclosures. Among the most effective solutions available in the modern construction market are specialized composite materials designed specifically for sound mitigation. Knowing exactly which acoustic sandwich panel specifications matter most is the foundational step in ensuring that a building meets its required acoustic performance targets, safety regulations, and long-term durability goals. By understanding the intricate details of these specifications, project stakeholders can make informed decisions that balance acoustic efficiency, structural integrity, thermal performance, and aesthetic appeal.
The selection process for building materials has evolved significantly over the years. In the past, achieving high levels of sound insulation often required thick, heavy, and cumbersome traditional materials like solid concrete or multi-layered masonry. Today, advanced manufacturing techniques have led to the development of lightweight, highly efficient composite panels that offer superior performance without the excessive weight and complex installation processes of legacy materials. However, because these modern panels are highly engineered systems, evaluating them requires a deep dive into their specific technical attributes. Every component of the panel—from the outer metal facings to the internal core materials, the surface coatings, the overall dimensions, and the fire ratings—plays a vital role in the final performance of the installation. Therefore, a comprehensive understanding of acoustic sandwich panel specifications is absolutely essential for anyone involved in the procurement, design, or installation of sound-mitigating architectural elements.

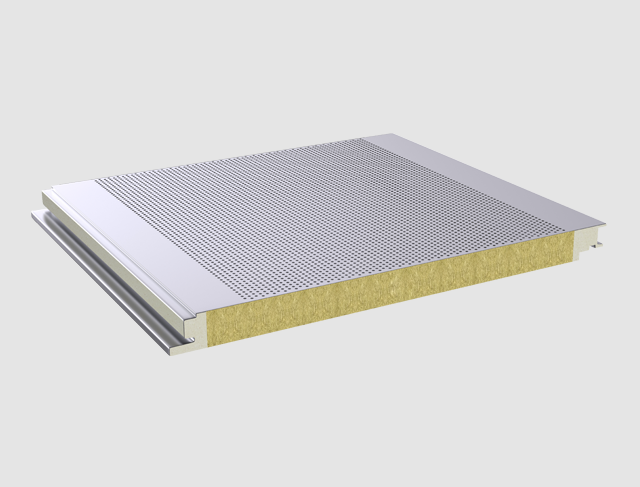

To fully appreciate the value and functionality of these advanced building materials, one must first understand their fundamental construction and the physics of how they manage sound. At its core, an acoustic sandwich panel is a composite structure consisting of two outer metal skins bonded to an internal core material. The magic of the acoustic performance lies in the specific design of these components and how they interact with sound waves. For instance, the TOPROPAN Custom Acoustic Sandwich Panel for building, specifically the Model QB-1000, exemplifies the sophisticated engineering required to achieve optimal noise reduction in demanding environments. This particular model utilizes a highly specialized design to address complex acoustic challenges across a wide variety of applications.
One of the defining features of a high-performance acoustic panel is the design of its outer facing. In the case of the TOPROPAN Model QB-1000, the panel features a punched outer metal plate. This perforation is not merely an aesthetic choice; it is a critical functional element. When sound waves strike a solid, flat surface, a significant portion of the acoustic energy is reflected back into the space, creating echoes and reverberation. However, when sound waves encounter a punched outer metal plate, the perforations allow the acoustic energy to pass through the rigid exterior and enter the internal core of the panel. Once inside, the sound waves interact with the internal sound-absorbing materials. The acoustic energy causes the fibers within the core material to vibrate, which converts the sound energy into a minute amount of heat through friction. This process effectively dissipates the noise, preventing it from reflecting back into the room or transmitting through the wall to adjacent spaces. This intricate interaction between the perforated facing and the absorbent core is the primary mechanism by which these panels achieve their remarkable acoustic performance.
When evaluating panels for specific projects, the core material is arguably the most critical specification to consider, as it dictates both the acoustic and thermal properties of the system. The TOPROPAN Custom Acoustic Sandwich Panel for building offers two primary core material options, each tailored to specific environmental and acoustic requirements. The first option is a rock wool core. Rock wool is highly regarded in the acoustic engineering field for its exceptional ability to absorb medium and low-frequency noise. Low-frequency noise, such as the deep rumble of heavy industrial machinery, HVAC systems, or large engines, is notoriously difficult to mitigate because the long sound waves can easily penetrate standard building materials. The dense, fibrous structure of rock wool provides the necessary mass and internal friction to effectively trap and dissipate these challenging low-frequency sound waves, making it an ideal choice for industrial plants, factory workshops, and equipment enclosures.
The second core option available for the TOPROPAN Model QB-1000 is a glass wool core. While glass wool also provides excellent sound absorption capabilities, it is particularly valued for its dual functionality: it offers a powerful combination of sound absorption and heat insulation. In many building scenarios, such as high-temperature construction workshops or facilities located in extreme climates, managing thermal transfer is just as important as managing noise. A glass wool core provides a high degree of thermal resistance, helping to maintain stable indoor temperatures, reduce the load on heating and cooling systems, and lower overall energy costs. By offering both rock wool and glass wool options, the manufacturer ensures that specifiers can select the exact core material that aligns with the specific acoustic and thermal demands of their project.
Beyond the type of core material, the density of the core is another vital specification that directly impacts performance. The TOPROPAN panels feature a core material density ranging from 60 to 120kg/m³. This density range is carefully calibrated to provide structural rigidity while maximizing acoustic absorption. A higher density core generally offers better sound transmission loss, meaning it is more effective at preventing sound from passing completely through the panel. Conversely, the specific density chosen within this range can be optimized based on the exact frequencies of noise that need to be controlled in the target environment.
The physical dimensions of the panels are crucial for both the acoustic performance and the structural integration of the building envelope. The thickness of the panel is a primary determinant of its overall sound insulation capability and its thermal resistance. The TOPROPAN Custom Acoustic Sandwich Panel for building is available in a wide array of nominal thickness options, specifically 50mm, 60mm, 70mm, 75mm, 80mm, 100mm, 120mm, and 150mm, with a manufacturing tolerance of ±2mm. This extensive range allows architects and engineers to precisely match the panel thickness to the required acoustic and thermal performance standards of the building. For projects with stringent noise control requirements, selecting an acoustic sandwich panel thickness 50mm to 150mm ensures that the appropriate level of mass and absorption material is present to achieve the desired sound reduction index.
In addition to thickness, the width of the panels dictates the layout, the number of seams in the installation, and the overall speed of construction. The TOPROPAN panels have a standard useful width of 1000mm. This standardized width is highly efficient for transportation, handling on the job site, and rapid installation over large surface areas. However, architectural designs often require specific dimensions to accommodate unique building geometries, window placements, or structural grids. Recognizing this need for flexibility, the manufacturer specifies that widths other than the standard 1000mm must be customized. This customization capability ensures that the panels can be seamlessly integrated into virtually any architectural design without compromising the integrity of the acoustic envelope.
While the core material handles the sound absorption and thermal insulation, the outer surface materials are responsible for protecting the core, providing structural strength, and delivering the desired aesthetic finish. The TOPROPAN Model QB-1000 offers a variety of high-quality surface material options to suit different environmental conditions and design preferences. These options include PPGI (Pre-Painted Galvanized Iron), PPAI (Pre-Painted Aluminum Iron), Stainless Steel, and Aluminum Plat. Each of these materials offers distinct advantages. For highly corrosive environments, such as chemical processing plants or coastal facilities, a PPGI stainless steel acoustic panel surface provides exceptional durability and resistance to rust and degradation, ensuring the long-term integrity of the acoustic system.
The thickness of these surface metals is also a critical specification. According to the manufacturer's stated specifications, the surface metal thickness ranges from 0.3mm-1.0m. This robust metal facing ensures that the panels can withstand physical impacts, wind loads, and the rigors of industrial environments while maintaining their precise shape and acoustic properties.
Furthermore, the surface materials are enhanced with various coating options to provide additional protection against weathering, UV radiation, and chemical exposure, as well as to offer a wide range of aesthetic choices. The available surface coating options include PE (Polyester), SMP (Silicone Modified Polyester), HDP (High Durability Polyester), and PVDF (Polyvinylidene Fluoride). PVDF, for example, is renowned for its exceptional weatherability and color retention, making it an excellent choice for exterior applications where long-term visual appeal is paramount. To further accommodate architectural design requirements, the panels are available in a diverse palette of colors, including White, Grayish White, Beige, Silver, Iron Gray, Orange, and Blue. This color variety allows the acoustic panels to contribute positively to the visual environment of the building, rather than appearing as purely utilitarian industrial components.
In modern construction, fire safety is an absolute priority, and the materials used in the building envelope must adhere to strict fire performance standards. Acoustic panels, due to their composite nature, must be carefully engineered to ensure they do not contribute to the spread of fire or emit dangerous smoke and toxins. The TOPROPAN Custom Acoustic Sandwich Panel for building is designed with a paramount focus on fire safety. It utilizes a Class A non-combustible core, which provides reliable fire resistance and ensures that the core material itself will not ignite or sustain combustion under fire conditions.
The overall fire resistance performance of the panel system is rated as A2. This high rating indicates that the panels offer excellent reaction-to-fire properties, making an A2 fire resistant acoustic sandwich panel a critical component for ensuring the safety of building occupants and protecting valuable property. This level of fire resistance is particularly crucial in high-occupancy public facilities, critical infrastructure, and industrial plants where the risk of fire may be elevated.
Beyond fire ratings, the manufacturing and quality control processes behind these panels are validated by a comprehensive suite of international certifications. The TOPROPAN panels are produced under strict quality and environmental management systems, holding certifications for ISO:2015, ISO14001:2015, and ISO45001:2018. These ISO certifications demonstrate a commitment to consistent manufacturing quality, environmental responsibility, and occupational health and safety. Furthermore, the panels are CE Certified and TUV Certified, providing independent verification that the products meet rigorous European and international safety, health, and environmental protection requirements. These certifications give specifiers and building owners the confidence that they are investing in a highly reliable and extensively tested building material.
The ultimate measure of an acoustic panel's value is its ability to demonstrably reduce noise levels. The TOPROPAN Model QB-1000 delivers exceptional, quantifiable acoustic performance that can dramatically transform noisy environments. According to the verified product specifications, these panels are capable of reducing indoor noise by over 60%. This massive reduction in ambient noise pressure can mean the difference between a hazardous, deafening industrial workspace and a safe, compliant operational environment. Furthermore, the panels enhance sound insulation performance by 100%. This means they are highly effective not only at absorbing noise within a room but also at preventing noise from transmitting through the walls to adjacent areas, ensuring privacy and acoustic isolation where it is needed most.
Because of their robust construction, customizable dimensions, high fire resistance, and exceptional sound mitigation capabilities, the TOPROPAN Custom Acoustic Sandwich Panels are suitable for a vast array of applications across numerous industries. In the industrial sector, they are frequently utilized in industrial plants and factory workshops. In these settings, the panels can be used for constructing outer walls to prevent industrial noise from polluting the surrounding community, or they can be used internally for wrapping equipment and creating soundproof enclosures around particularly loud machinery.
In the public and commercial sectors, the demand for acoustic control is equally high, though often for different reasons. These panels are highly effective in public facilities including libraries and museums, where a quiet, contemplative atmosphere is essential for the visitor experience. They are also deployed in high-speed railway stations to manage the immense acoustic energy generated by passing trains and large crowds. In modern office environments, particularly open plan office spaces, the panels help control reverberation and background noise, improving speech intelligibility and employee concentration. They are also ideal for computer rooms, where they help dampen the constant hum of cooling systems and servers.
For venues dedicated to communication and performance, such as conference halls and meeting rooms, as well as theaters and concert halls, the panels are used extensively for wall and ceiling decoration and sound absorption. In these applications, the ability to fine-tune the acoustic environment is critical, and the panels help eliminate unwanted echoes and ensure clear audio transmission. Additionally, their robust structural properties make them suitable for integration into steel-structure buildings and high-temperature construction workshops, proving their versatility across both standard and highly specialized architectural applications.
Investing in high-quality architectural materials requires confidence in the long-term reliability of the product and the support of the manufacturer. Recognizing this, the TOPROPAN Custom Acoustic Sandwich Panel for building is backed by a comprehensive 36-month warranty, providing significant peace of mind for building owners and facility managers. This warranty underscores the manufacturer's confidence in the durability and performance of their panels under real-world conditions.
Furthermore, the commitment to customer success extends far beyond the initial purchase and installation. The manufacturer provides permanent technical support to assist with any engineering, installation, or maintenance inquiries that may arise throughout the lifespan of the building. Should any components require replacement due to unforeseen damage or facility modifications, paid spare parts are available at any time, ensuring that the acoustic system can be maintained and repaired without the need for complete system overhauls. For project planners and procurement officers looking to integrate these advanced acoustic solutions into their next project, accessing detailed pricing and acoustic sandwich panel quotation support is a streamlined process designed to facilitate accurate budgeting and project planning.
The TOPROPAN Custom Acoustic Sandwich Panel for building (Model: QB-1000) represents a highly engineered, versatile solution for demanding noise control applications, offering quantifiable acoustic improvements by reducing indoor noise by over 60% and enhancing sound insulation by 100% through its punched metal plate and sound-absorbing core design. With customizable thicknesses from 50mm to 150mm, multiple durable surface options including PPGI and stainless steel, and a choice between rock wool or glass wool cores with densities of 60-120kg/m³, it provides tailored thermal and acoustic performance for industrial plants, public facilities, theaters, and open-plan offices. Backed by a Class A non-combustible core, A2 fire resistance, comprehensive ISO, CE, and TUV certifications, and supported by a 36-month warranty with permanent technical assistance, this panel system delivers reliable, safe, and long-lasting acoustic management for modern construction projects.
